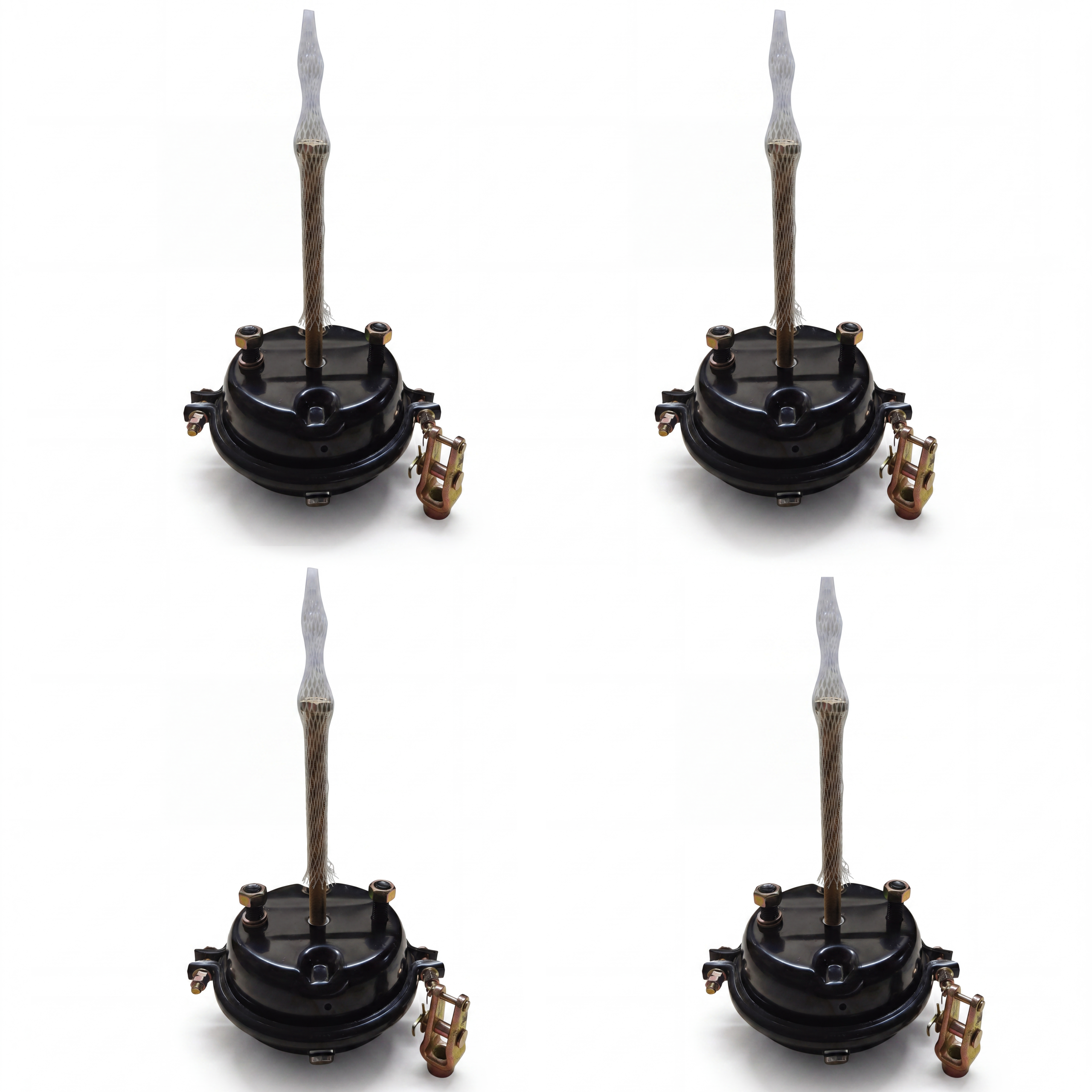

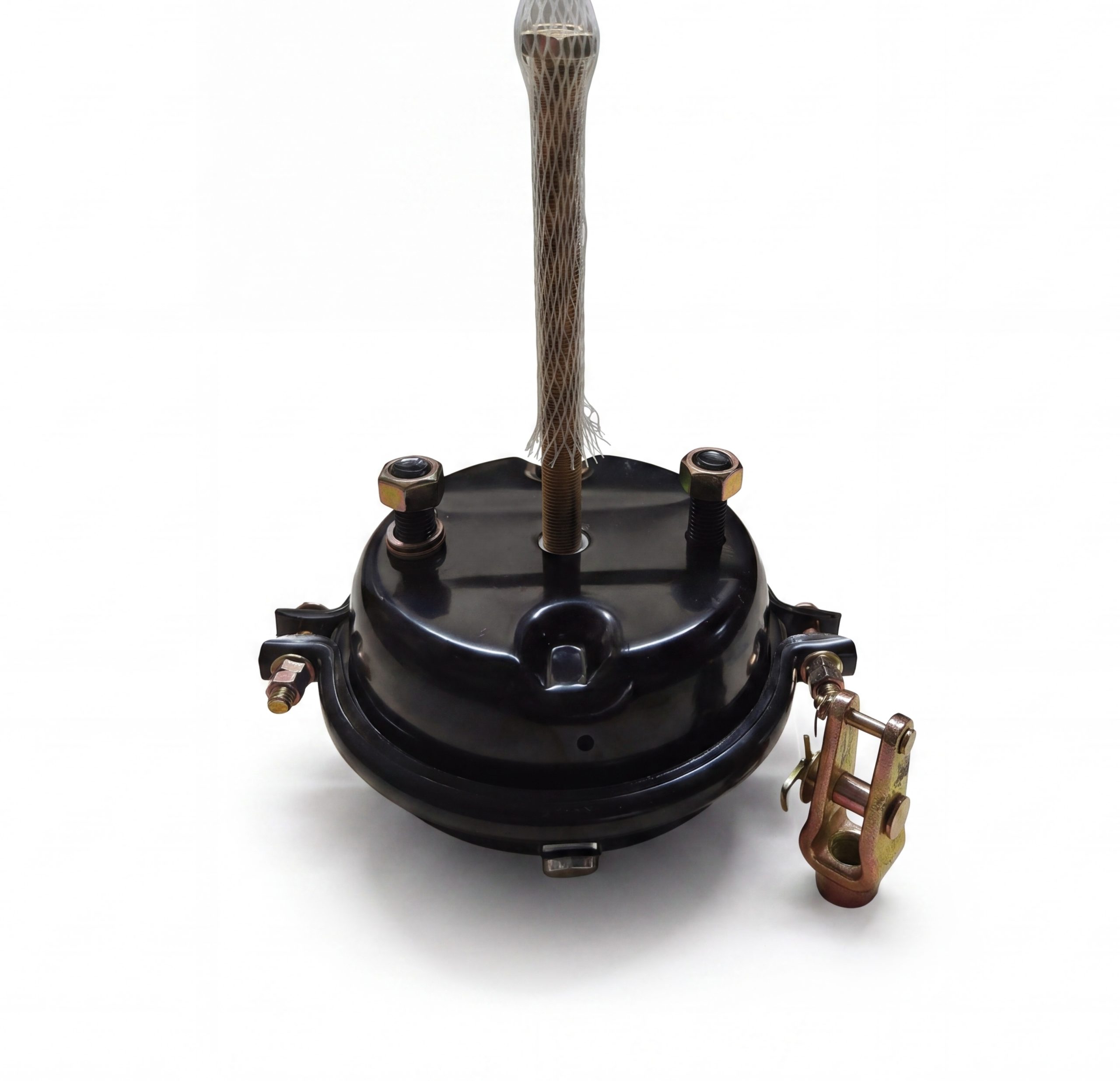

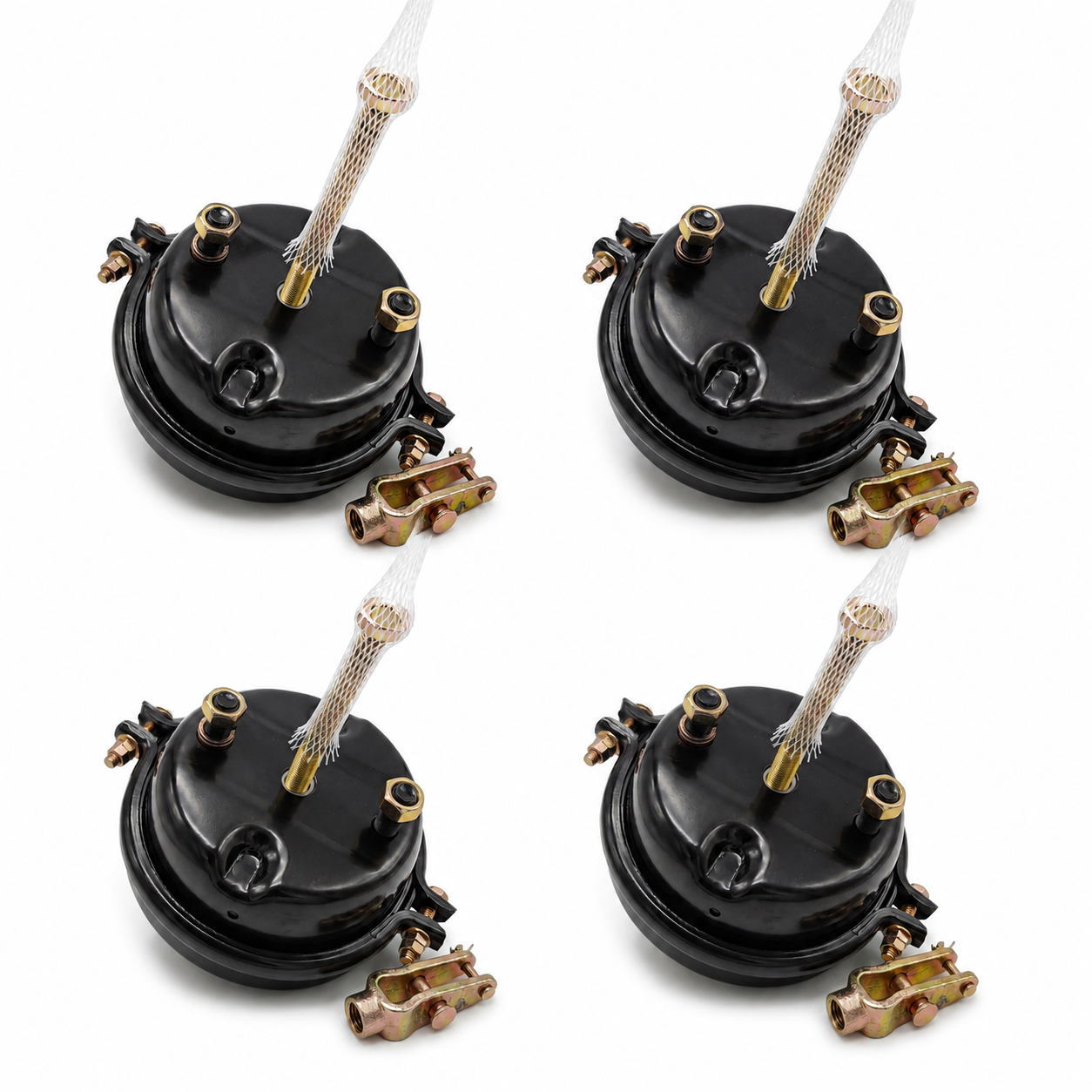

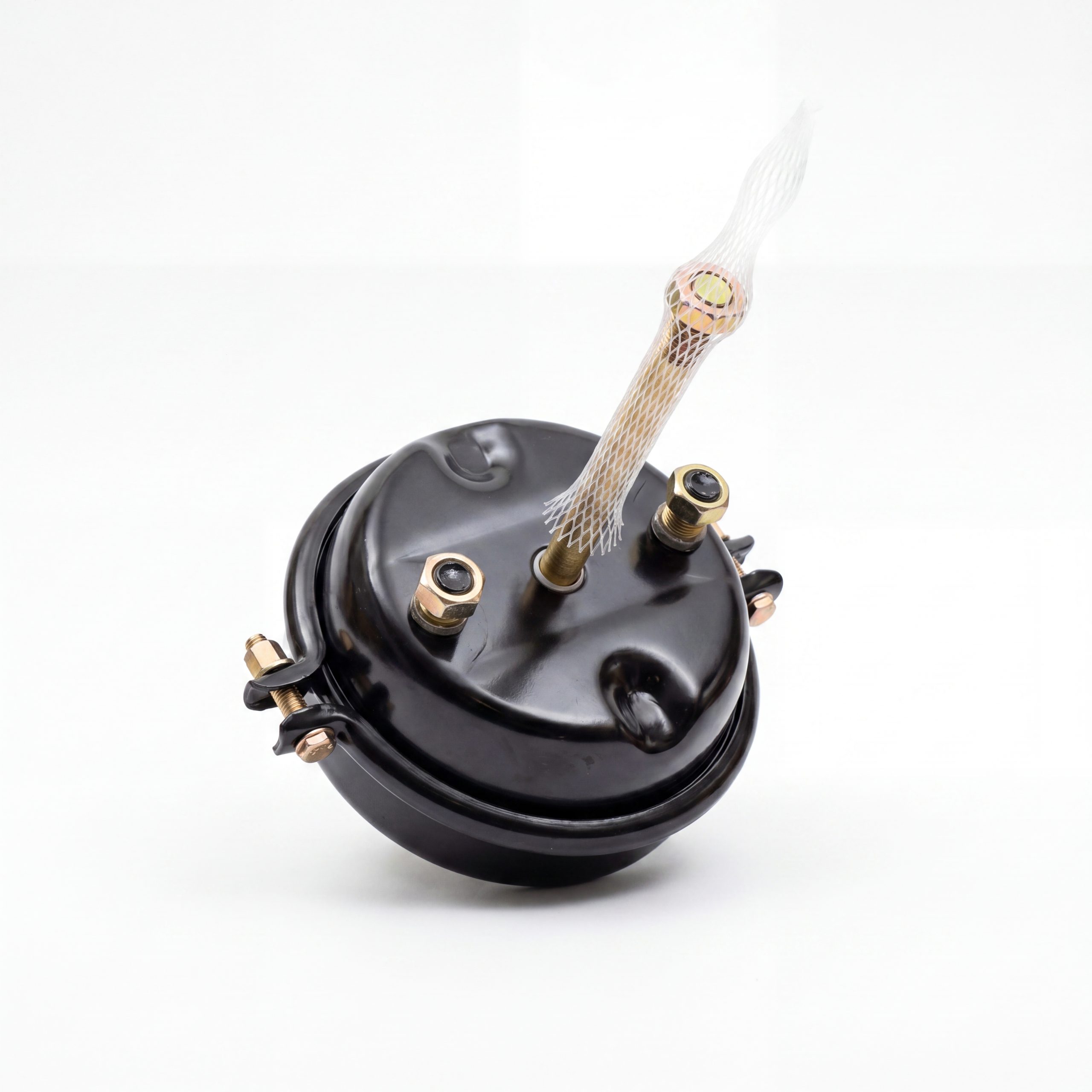

PAT-20 GBK Type 20 Service Brake Chamber, 2.5″ Long Stroke, with Clevis
In Stock: 152
Cross-Reference — This Part Replaces
GBK PAT-20 is a direct replacement for the following OEM and aftermarket part numbers:
| Brand | Part Number |
|---|---|
| Bendix | 800824 |
| Haldex | SC20 |
| Meritor | E-20S |
| MGM | 1420001 |
| Automann | 179.SC20 |
| Velvac | 030016 |
| Aftermarket Ref. | OEM aftermarket 20SC |
| Anchorlok | TR2020 |
| Bendix | 2031820 |
| Haldex | GC2020 |
| Meritor | (Eaton) E10094 |
| MGM | TR2020 |
| Aftermarket Ref. | OTR2020S |
| TSE | 4022007 |
Product Specifications
| Stroke | 2.25" |
|---|---|
| Push Rod Length | 8.7" |
| Material | Black Powder-Coated Steel |
| Clevis | Clevis with Two Pin Holes |
| Mounting Holes | 2 |
| Bolt Spacing | 4.75" |
| Push Rod Thread | 5/8"-18 UNF |
| Stud Thread | 5/8"-11 UNC |
| Air Port | 3/8" NPT |
| Net Weight | 33.07 lbs |
| Gross Weight | 35.27 lbs |
Packaging: Sold per piece. Packed 4 pieces per box. 50 pcs/pallet.
- Universal Fit & Compatibility: High-performance Type 20 (T20) service brake chamber designed for S-Cam air brake systems. Direct replacement for Class 8 semi trucks and trailers, fitting Freightliner, Kenworth, Peterbilt, Mack, Volvo, and International.
- 2.25" Standard Stroke: This chamber features a 2.25-inch standard stroke (57mm), engineered to meet or exceed FMCSA and DOT brake performance requirements for S-Cam drum brake applications.
- 8.7" Threaded Push Rod: Equipped with an 8.7-inch threaded push rod (5/8"-18 UNF thread) and a clevis with two pin holes. Easy installation and slack adjuster alignment.
- Cross Reference Models: Directly replaces Bendix 800824, Haldex SC20, Meritor E-20S, MGM 1420001, Automann 179.SC20, Velvac 030016, and OEM aftermarket 20SC.
- Heavy-Duty Construction: Built with a reinforced, corrosion-resistant heavy-gauge steel housing and a premium-grade diaphragm for longer service life. Includes mounting hardware with 4.75" bolt centers (5/8"-11 UNC bolts) and 3/8" NPT air ports.
Reliable Braking Performance for Heavy-Duty Fleets
The GBK PAT-20 is a professional-grade Type 20 service brake chamber, engineered for the demanding conditions of long-haul trucking. Whether you are replacing a worn-out unit on a steer axle or upgrading a trailer system, this chamber delivers the precise mechanical force needed for controlled, safe stops.
Technical Specifications: Type: T20 Service Chamber | Stroke: 2.25" Standard (57mm) | Push Rod: 8.7" Threaded (5/8"-18 UNF) | Mounting Studs: 5/8"-11 UNC, 4.75" bolt spacing | Air Port: 3/8" NPT × 2 | Diaphragm Ø: 7" (178mm) | Includes: Clevis, Cotter Pin, and Mounting Nuts
