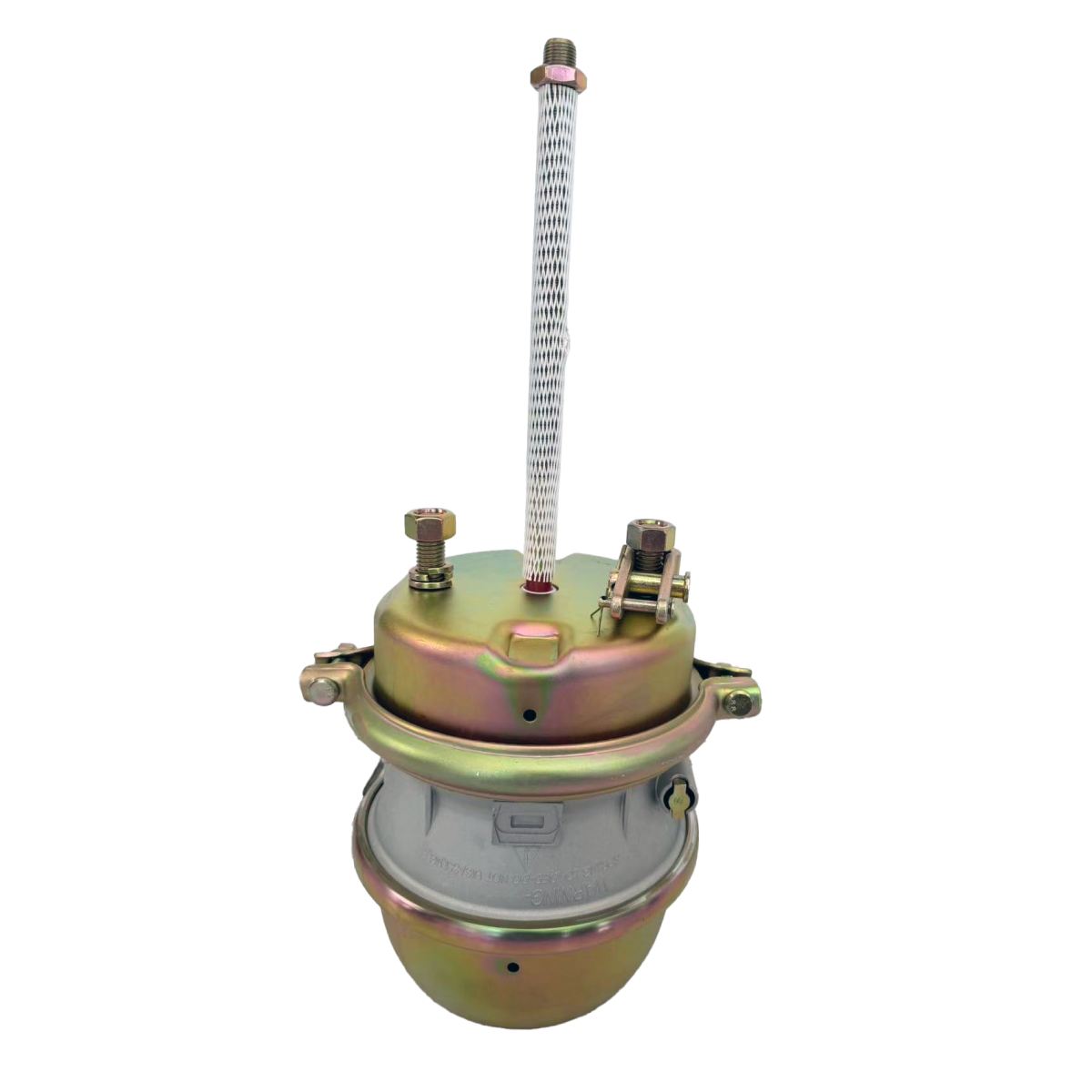

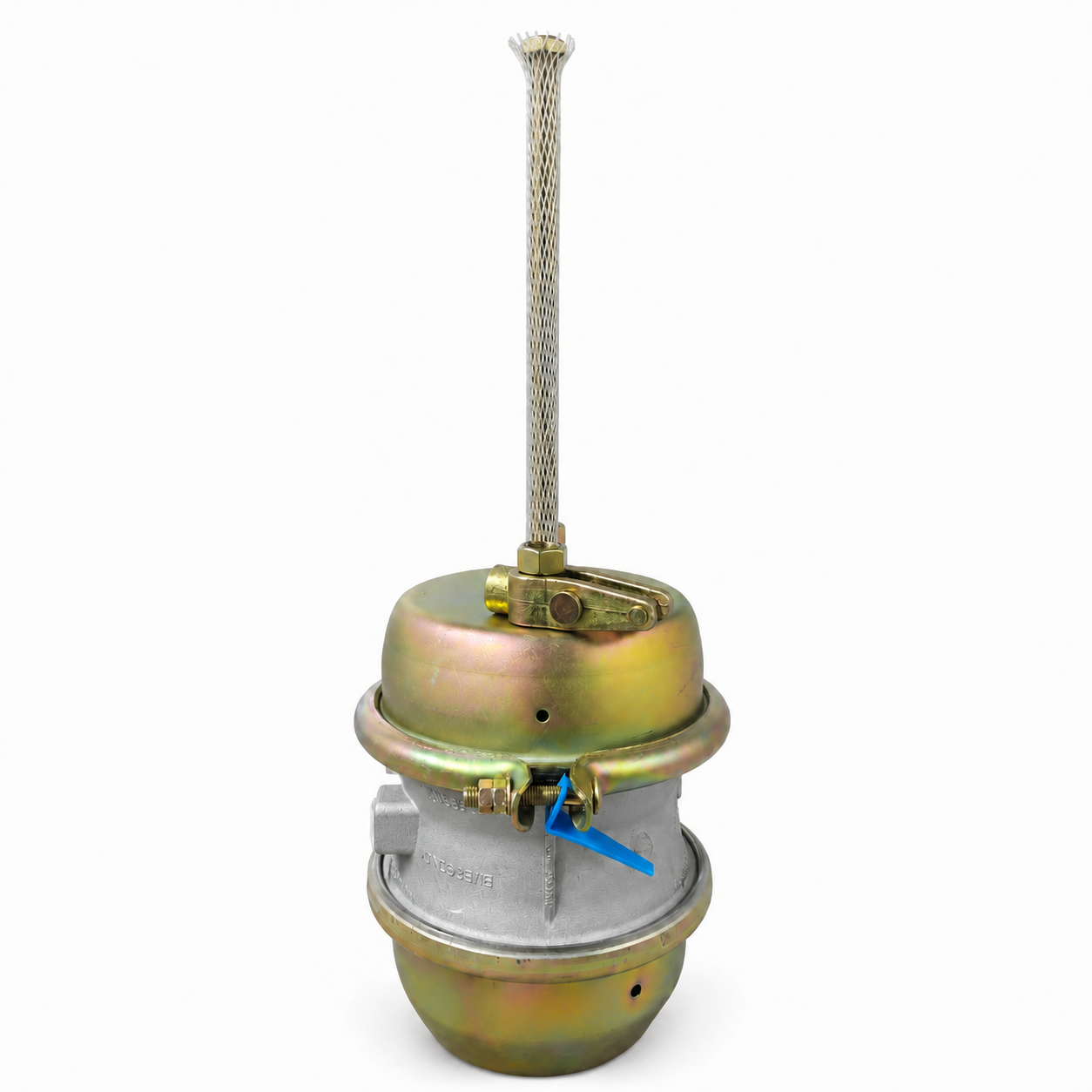

GT-30/30L GBK Brake Chamber 3030 Long Stroke with clevis, gold, sealed bottom, 3″ stroke, long PUSH ROD 13″
GBK GT-30/30L gold-finish Type 30/30 combination spring brake chamber, 3″ long stroke, extended 13″ fully threaded push rod (5/8″-18 UNF), non-welded detachable clevis kit and mounting hardware, sealed tamper-resistant housing with caging T-bolt, square air ports (long-stroke casting). For drive and trailer axles on Class 6-8 semi trucks.
In Stock: 110
Wholesale over $1,500 to NJ & NY
- Secure checkout VISAAMEXDISCOVER PayG Pay
- Defective-on-arrival parts replaced free — return policy
- Cross-reference checked against OEM & aftermarket part numbers
The GBK GT-30/30L is a gold-finish Type 30/30 combination spring brake chamber built for long-stroke applications on Class 6-8 commercial trucks and heavy-duty trailers. It pairs a 3" long-stroke service diaphragm with a high-tension parking/emergency spring brake, and ships with an extended 13" fully threaded push rod (5/8"-18 UNF) plus a non-welded detachable clevis kit for on-site cut-to-length fitment. Square air ports identify the long-stroke casting; the factory-sealed, tamper-resistant housing locks down the power spring and includes a mechanical caging bolt (T-Bolt) for safe servicing. FMVSS-121 compliant.
- Type 30/30 Long-Stroke Combination: Double-diaphragm piggyback — Type 30 service brake plus Type 30 spring brake; 3" long stroke for extended-travel S-cam drum systems.

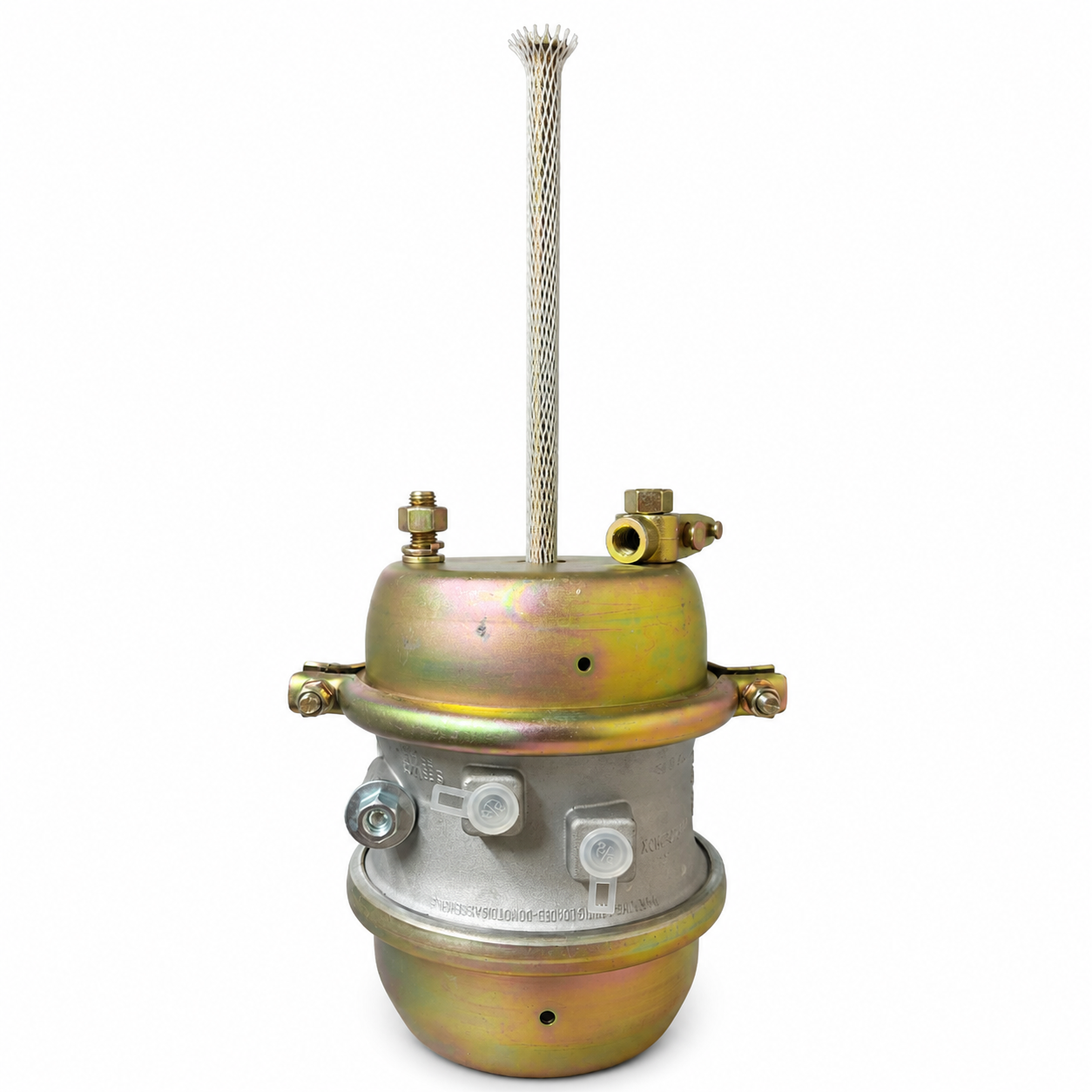

- Square Air Ports: Long-stroke casting with square air-port bosses (3/8" NPT) — visually distinct from the round-port regular-stroke GT-30/30.
- 13" Extended Threaded Push Rod: Extra-long 13" fully threaded push rod (5/8"-18 UNF) for deep-set axles; non-welded detachable clevis allows on-site cut-to-length customization; includes caging T-bolt.

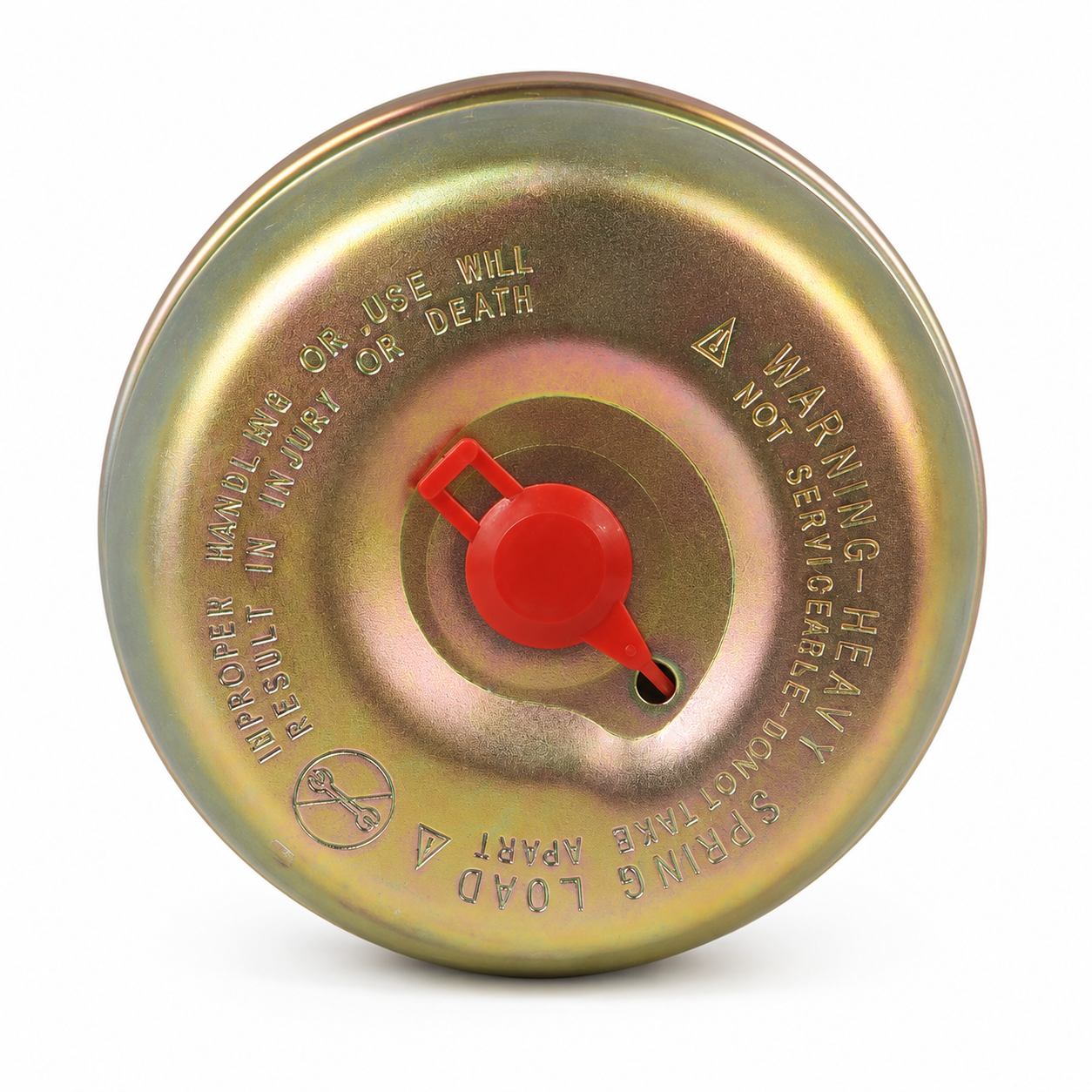

- Sealed & FMVSS-121 Compliant: Factory tamper-resistant sealed housing; gold powder-coated corrosion-resistant finish; double-diaphragm unit fully complies with FMVSS-121.
- Universal Fit: Direct replacement for Class 6-8 semi trucks and trailers; 5/8"-11 UNC mounting studs, 4.75" bolt center spacing.
Technical Specifications: Type: T30/30 Combination Long Stroke | Service Stroke: 3.0" Long | Push Rod: 13" Threaded 5/8"-18 UNF | Clevis: Non-Welded Detachable | Mounting Studs: 5/8"-11 UNC, 4.75" bolt spacing | Air Port: Square, 3/8" NPT × 2 | Finish: Gold Powder-Coated | Includes: Clevis, Caging T-Bolt, Cotter Pin, Mounting Nuts
Packaging: Sold per piece. 50 pcs/pallet.
Product Specifications
| Material | Gold Powder-Coated Steel |
|---|---|
| Chamber Type | Type 30/30 Combination (Long Stroke) |
| Stroke | 3.0" Long |
| Push Rod Length | 13" |
| Push Rod Thread | 5/8"-18 UNF |
| Clevis | Detachable Threaded Clevis (Non-Welded) |
| Stud Thread | 5/8"-11 UNC |
| Bolt Spacing | 4.75" |
| Air Port | 3/8" NPT, Square |
| Mounting Holes | 2 |
| Net Weight | 39 lbs |
| Gross Weight | 35.27 lbs |
Cross-reference by brand
| Brand | Part Number |
|---|---|
| Bendix | NT3030ELS-WC |
| Haldex | GC3030L |
| Automann | 179.SB3030SL |
| MGM | 3230951 |
| World American | WA3030TL |
| Aftermarket Ref. | T30/30DD-L, GBCT3030LS |
