PAT-30 GBK Type 3030 Spring Brake Chamber, 3″ Long Stroke, with Clevis

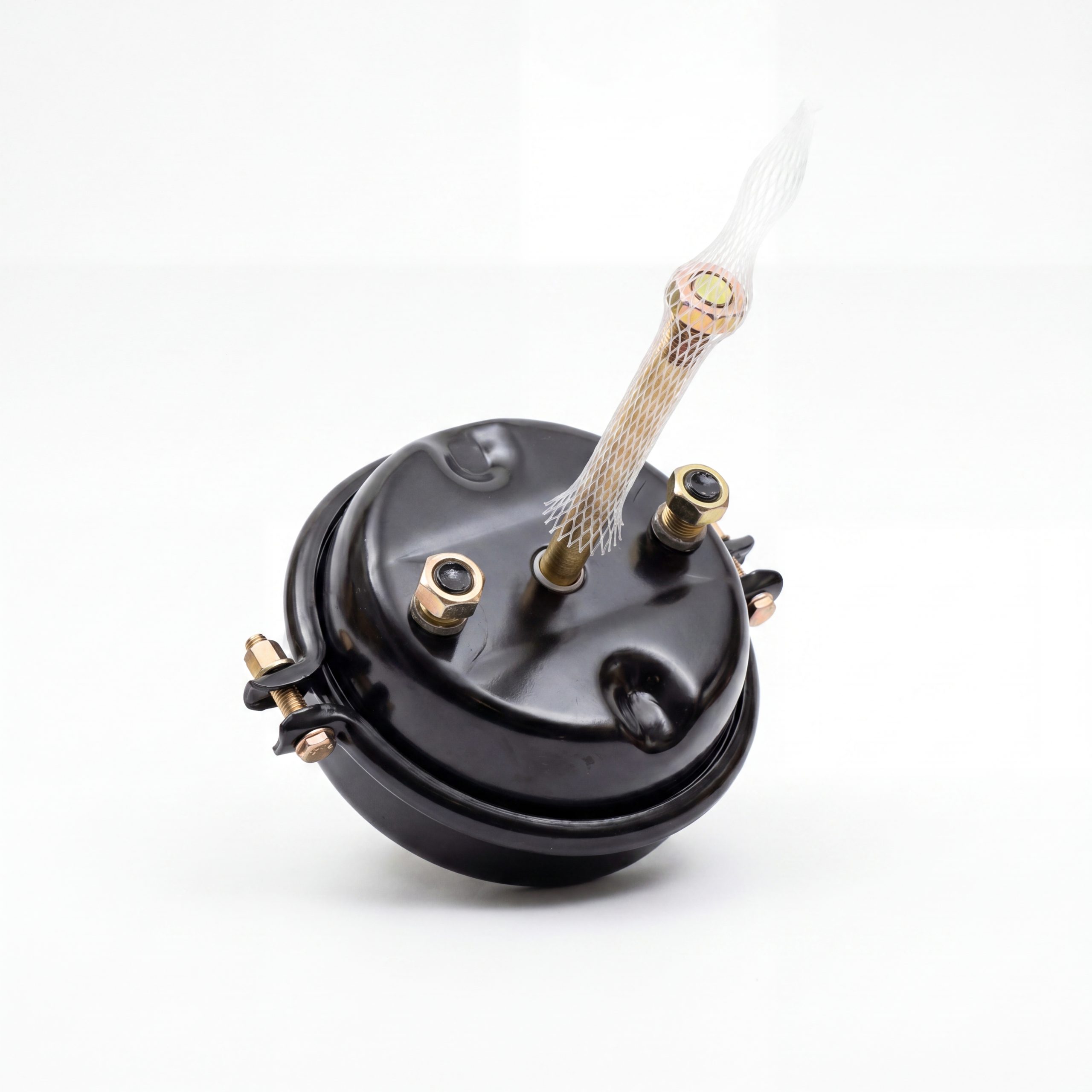

Type 30 service brake chamber, 2.5″ standard stroke, 8.5″ threaded push rod (5/8″-18 UNF), clevis kit and mounting hardware, black powder-coated steel, 3/8″ NPT port, 4.75″ bolt spacing. Replaces Bendix 800826, Haldex SC30, Meritor E-BC30S, MGM 1431001. 50 pcs/pallet.
In Stock: 18
Cross-Reference — This Part Replaces
GBK PAT-30 is a direct replacement for the following OEM and aftermarket part numbers:
| Brand | Part Number |
|---|---|
| Bendix | 800826 |
| Haldex | SC30 |
| Meritor | E-BC30S |
| MGM | MA36300 |
| Automann | 179.SC30 |
| Bendix | 2031830 |
| Haldex | GC3030 |
| Meritor | (Eaton) E10097 |
| MGM | TR3030 |
| Aftermarket Ref. | OTR3030S |
| TSE | 4023007 |
Product Specifications
| Stroke | 2.5" Standard |
|---|---|
| Push Rod Length | 8.7" |
| Material | Black Powder-Coated Steel |
| Clevis | Clevis with Two Pin Holes |
| Mounting Holes | 2 |
| Bolt Spacing | 4.75" |
| Push Rod Thread | 5/8"-18 UNF |
| Stud Thread | 5/8"-11 UNC |
| Air Port | 3/8" NPT |
| Net Weight | 37.48 lbs |
| Gross Weight | 39.68 lbs |
Packaging: Sold per piece. Packed 4 pieces per box. 50 pcs/pallet.
- Universal Fit: Type 30 service brake chamber for S-Cam air brake systems. Class 8 semi trucks and trailers.
- 2.5" Standard Stroke: Meets FMCSA and DOT brake performance requirements for S-Cam drum brake applications.
- 8.7" Threaded Push Rod: 8.7" threaded push rod (5/8"-18 UNF) and clevis with two pin holes.
- Cross Reference Models: Replaces Bendix 800826, Haldex SC30, Meritor E-BC30S, MGM MA36300, Automann 179.SC30.
- Heavy-Duty Construction: Reinforced steel housing and premium diaphragm. 4.75" bolt centers (5/8"-11 UNC), 3/8" NPT air ports.
Technical Specifications: Type: T30 Service Chamber | Stroke: 2.5" Standard | Push Rod: 8.7" Threaded (5/8"-18 UNF) | Mounting Studs: 5/8"-11 UNC, 4.75" bolt spacing | Air Port: 3/8" NPT x 2
