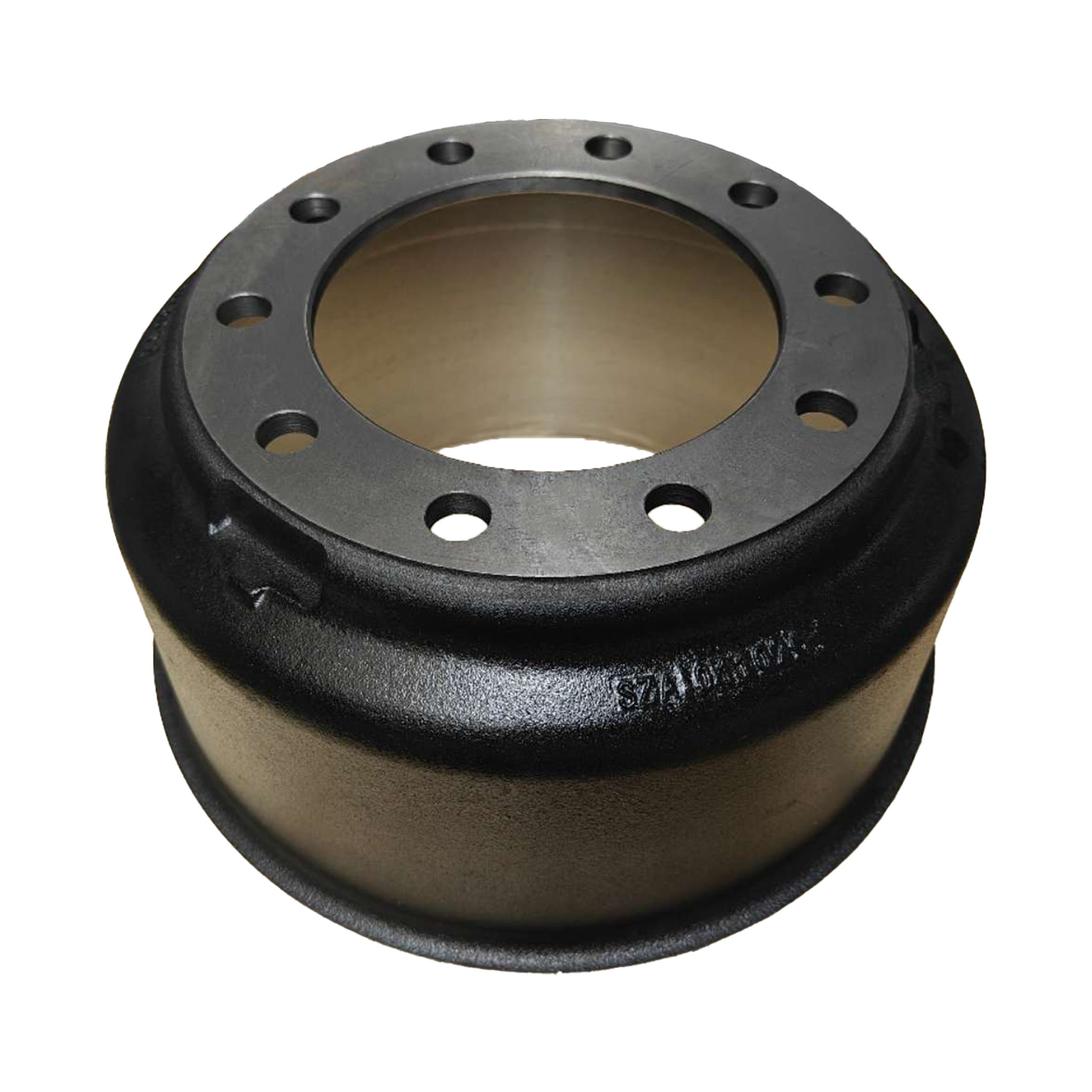

GD3052 GBK Brake Drum, 16.5″ x 8.62″, 10-Hole, Balanced
Heavy-duty balanced cast iron brake drum, 16.5″ x 8.62″, 10-hole, 11.25″ BC, 118 lbs. Direct replacement for 3807X, 66854F, 66809B, 151.68607BA. Use with brake shoe B-471023K.
In Stock: 80
Cross-Reference — This Part Replaces
GBK GD3052 is a direct replacement for the following OEM and aftermarket part numbers:
| Brand | Part Number |
|---|---|
| Aftermarket Ref. | M328N325 |
| Aftermarket Ref. | 3807X |
| Aftermarket Ref. | 66809 |
| Aftermarket Ref. | 10012097 |
| Aftermarket Ref. | 10033314 |
| Aftermarket Ref. | 151.68607BA |
| Aftermarket Ref. | 66809B |
| Aftermarket Ref. | 66854F |
Product Specifications
| Brake Size | 16.5" x 8.6" |
|---|---|
| Bolt Holes | 10 |
| Drum Weight | 118 lbs |
| Vehicle Type | Semi Truck / Heavy Duty |
| Net Weight | 118 lbs |
| Gross Weight | 118.0 lbs |
- Heavy-Duty Rear Brake Drum: GBK GD3052 is engineered for semi truck and commercial truck rear axle applications, delivering maximum stopping power under heavy-duty conditions.
- Precision Balanced Design: This 16.5" x 8.6" brake drum features a 10-hole configuration and is precision balanced to minimize vibration, ensuring smooth operation and extending wheel-end component life.
- OEM Replacement Compatibility: Directly replaces OEM part numbers M328N325, 3807X, 66809, 10012097, and 10033314, providing a reliable and exact fit for a wide range of heavy-duty trailers and trucks.
- Durable Cast Iron Construction: Manufactured from premium-grade cast iron, the GBK brake drum offers outstanding strength, heat resistance, and durability to withstand harsh commercial trucking environments.
- Weight and Specifications: Weighing 118 lbs, this brake drum fits 16.5" diameter and 8.6" width specifications with a 10-hole bolt pattern, ideal for heavy-haul trailer and truck applications.
- DOT Compliant Safety Standards: Designed to meet or exceed DOT compliance requirements, ensuring safe and reliable braking performance in demanding heavy-duty operations.
- Packaging Information: GBK GD3052 brake drums are carefully packaged to protect the product during transit; please contact for specific pcs per carton details if needed.
